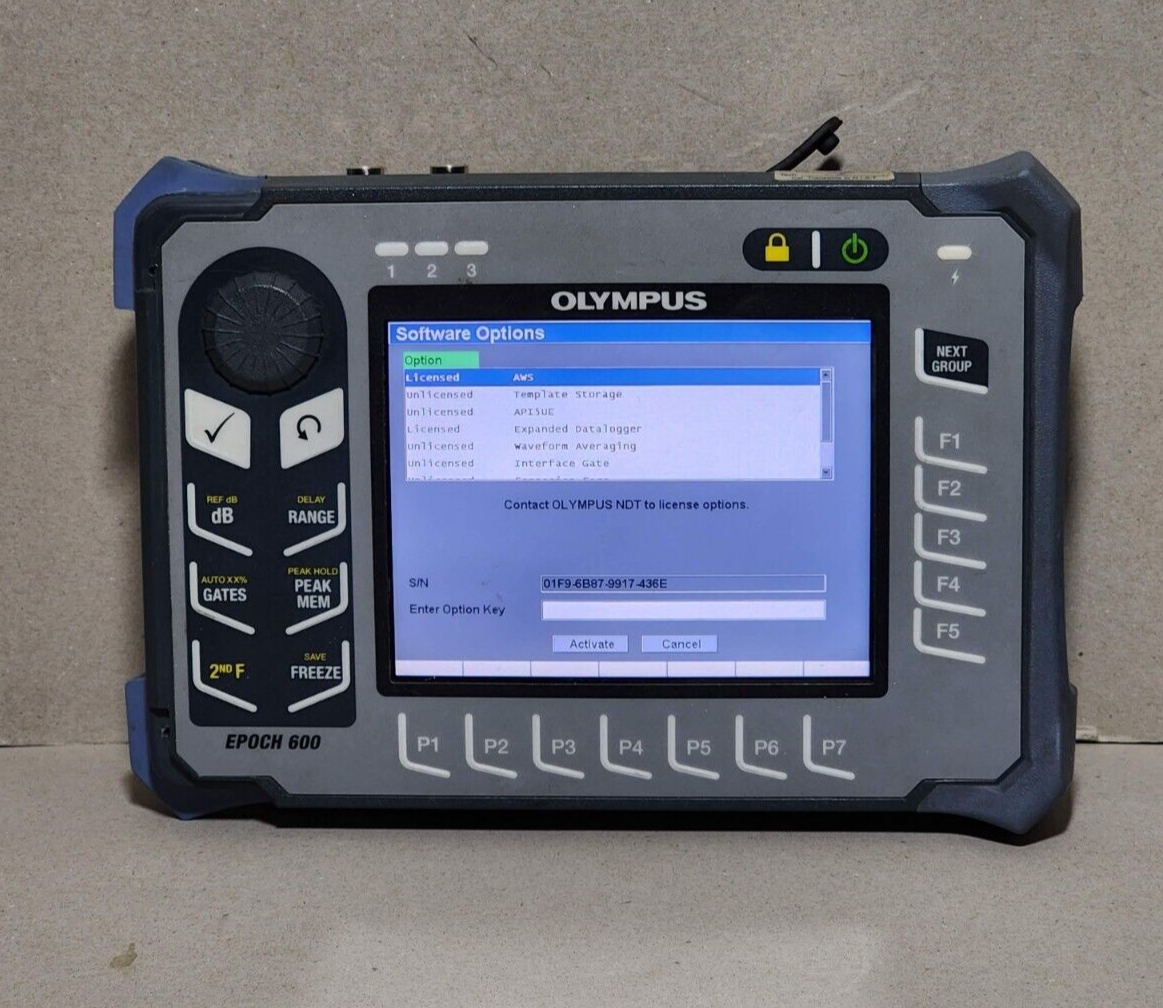

Olympus Epoch 600 Ultrasonic Flaw Detector

Image 1
  • Image 1
Price:
$3,268.00
SKU:
TSS01018
Brand:
Olympus
Condition:
Used
Rating:
( )
Availability:
In Stock
Shipping:
$110.00 (Fixed shipping cost)
Quantity:

Bookmark and Share

Product Description

Olympus Epoch 600 Ultrasonic Flaw Detector

The EPOCH 600 Digital Ultrasonic Flaw Detector combines Olympus’ industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The EPOCH 600 flaw detector’s blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.

The large, full VGA transflective display combined with our patent-pending digital high dynamic range receiver provides a stable, striking A-scan representation in any lighting condition. Available in two hardware configurations, the EPOCH 600 offers you the choice to adjust parameters with a knob or with a navigation area on the keypad. The EPOCH 600 is designed to meet the requirements of EN12668-1 and allows a full range of standard and optional flaw detection features. The rugged, ergonomic design allows use in nearly any inspection environment, while the flexible PerfectSquare™ pulser and digital filtering capabilities can tackle nearly any application.

Economy with Quality

The EPOCH 600 combines the efficiency of a basic flaw detector with the quality of Olympus’ most powerful fully digital ultrasonic instruments. A full range of dynamic, reliable inspection features are packaged with economy of size and ease of use. This optimal balance brings powerful flaw detection features within reach of any level of inspector.

Simple and Durable Operation

The EPOCH 600 design is focused on providing a very high level of flaw detection with the simplicity of a basic instrument. The EPOCH 600 is designed to be ergonomic, intuitive, and practical for both experienced and novice ultrasonic inspectors.

Vibrant Full VGA Display

The EPOCH 600 features a full VGA (640 x 480 pixels) resolution display. The horizontal design of the EPOCH 600 optimizes the A-scan size and readability on this high quality display. Built with transflective technology, this VGA display provides excellent clarity in indoor, low lighting conditions using its powerful backlight, as well as in direct sunlight by using the ambient light as a pseudo-backlight.

Pulser/Receiver

The EPOCH 600 comes standards with powerful flaw detection capabilities, such as:PerfectSquare tunable square wave pulserDigital high dynamic range receiverEight 100% digital filter setsAuto or manually adjustable PRF from 10 Hz to 2000 HzPulser voltage from 100 V to 400 VAmplitude resolution to ± 0.25%Five customizable digital measurements

Features:
  • Designed to meet the requirements of EN12668-1
  • PerfectSquare™ tunable square wave pulser
  • Digital high dynamic range receiver
  • Eight digital filters for enhanced signal-to-noise ratio
  • 2 kHz PRF for rapid scanning
  • Knob or navigation pad adjustment configurations
  • Large, full VGA sunlight readable display
  • Long battery life, supporting lithium-ion or alkaline batteries
  • Standard dynamic DAC/TVG and onboard DGS/AVG
  • 2 GB MicroSD memory card for data transfers and storage
  • USB On-The-Go (OTG) for PC communication
  • Alarm and VGA outputs
Specifications:

General
Overall dimensions: (W x H x D) 236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.)
Weight: 1.68 kg (3.72 lb), including lithium-ion battery
Languages: English, Spanish, French, German, Japanese, Chinese, Portuguese
Transducer: BNC or Number 1 LEMO
Data storage: 50,000 IDs onboard, removable 2 GB MicroSD card (standard)
Battery type/life: Single lithium-ion rechargeable standard/12 h to 13 h (lithium-ion), 3 h (alkaline)
Power requirements: AC Mains: 100 VAC to120 VAC, 200 VAC to240 VAC, 50 Hz to 60 Hz
Display type: Full VGA (640 x 480 pixels) transflective color LCD, 60 Hz update rate
Display dimensions (W x H, Diag.): 117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.)

Pulser
Pulser: Tunable Square Wave
PRF: 10 Hz to 2000 Hz in 10 Hz increments
Energy settings: 100 V, 200 V, 300 V or 400 V
Pulse width: Adjustable from 25 ns to 5,000 ns (0.1 MHz) with PerfectSquare™ technology
Damping: 50, 100, 200, 400 Ω

Gates
Measurement gates: 2 fully independent gates for amplitude and TOF measurements
Gate start: Variable over entire displayed range
Gate width: Variable from 2 to 95% full screen height
Alarms: Positive and Negative Threshold, Minimum Depth (Gate 1 and Gate 2)



Receiver
Gain: 0 to 110 dB
Maximum input signal: 20 V p-p
Receiver input impedance: 400 Ω ± 5%
Receiver bandwidth: 0.2 MHz to 26.5 MHz at –3 dB
Digital filter settings: Eight digital filter sets standard (0.2-10 MHz, 2.0- 21.5 MHz, 8.0-26.5 MHz, Battery type/life Single lithium-ion rechargeable standard/12 h to 13 h (lithium-ion), 3 h (alkaline) 0.5-4 MHz, 0.2-1.2 MHz, 1.5-8.5 MHz, 5-15 MHz, DC-10 MHz
Rectification: Full-wave, Positive Half-wave, Negative Halfwave, RF
System linearity: Horizontal : ± 0.2% FSW
Vertical linearity: 0.25% FSH, amplifier accuracy ± 1dB
Reject: 0 to 80% FSH with Visual Warning
Amplitude measurement: 0 to 110% full screen height with 0.25% resolution
Measurement rate: Equivalent to PRF in all modes



Measurements
Measurement display locations: 5 locations available (manual or auto selection)
Gate 1: Thickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight, Gates Min./Max. Depth, Min./Max. Amplitude
Gate 2: Same as Gate 1
Echo-to-Echo: Same as Gate 2-Gate 1
Other measurements: Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for  DGS/AVG, AWS D1.1,D1.5 rating (D), Reject Value
DAC.TVG: Standard
DAC points: Up to 50 points, 110 dB dynamic range
Special DAC modes: Custom DAC (up to 6 curves)
Curved surface connection: Standard OD or Bar correction for Angle Beam measurements



Includes:
  • Olympus Epoch 600 Ultrasonic Flaw Detector
  • AC Adapter/Charger
  • Power Cord
  • RS232 PC Interface Cable
  • User Manual On CD-ROM
  • Hard Carrying Case



Item is in good cosmetic and high-quality working condition. Tested and works..!!

We will ship within one business day. International consumers are welcome

Feel free to ask any questions. We constantly joyful to help you.
